The lightweight, smart, autonomous and non-pyrotechnical choice

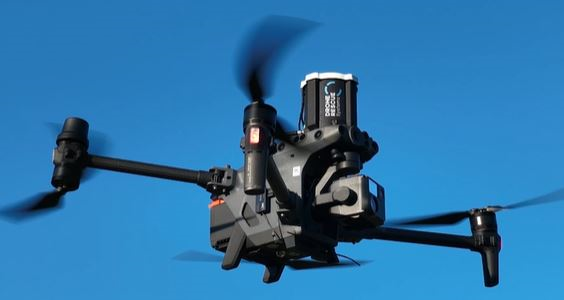

DRS-M30 Solution

The DRS-M30 was designed for the DJI Matrice 30. It is connected via DJI’s onboard SDK and is compatible with all current DJI extensions and antennas. Flight parameters for failure detection are specifically adjusted for the M30, based on countless hours of flight data, that have gone into optimizing failure detection algorithms

Specifications:

  • System weight: ~ 250 g
  • Height/Diameter: 97 mm / 100 mm
  • Parachute deployment: within 25 m
  • Interfaces: DJI Interface
  • Optional: Geofencing, RC Trigger
  • Descent velocity: ~ 3.5 m/s
  • Impact energy: ~ 24 J

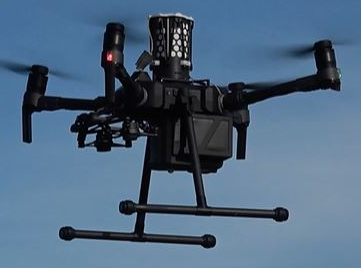

DRS-M200 Solution

The DRS-M200 was designed for the DJI Matrice 200. It is installed on top of the main frame and uses a modified battery hub to reliably stop the props from spinning when the parachute is activated. Our failure detection algorithms have been optimized for the M200, based on large amounts of flight data we gathered from testing and cooperating customers.

Specifications:

  • System weight: ~ 420 g
  • Height/Diameter: 130 mm / 75 mm
  • Parachute deployment: within 20—30 m
  • Interface: Battery hub
  • Optional: Geofencing, IP-Protection, RC Trigger
  • Descent velocity: 2—4 m/s
  • Impact energy: 6—80 J

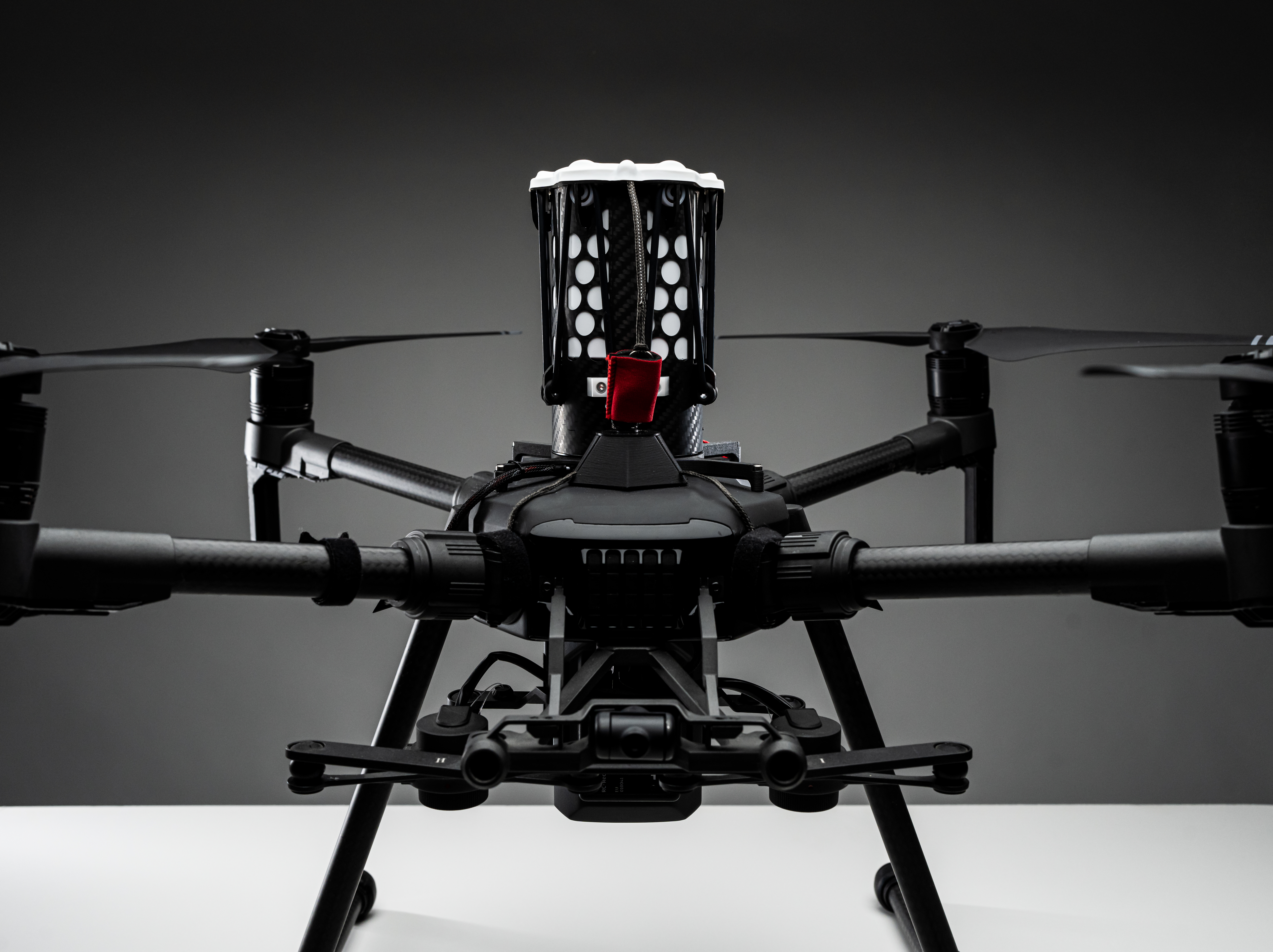

DRS-M210 V2 Solution

The DRS-M210-V2 was designed for the DJI Matrice 210 V2 series. It is installed on top of the main frame and is connected via the drone’s onboard SDK. Our failure detection algorithms have been optimized for the M210 V2, based on large amounts of flight data we gathered from testing and cooperating customers.

Specifications:

  • System weight: ~ 400 g
  • Height/Diameter: 130 mm / 75 mm
  • Parachute deployment: within 20—30 m
  • Interface: O-SDK
  • Optional: Geofencing, IP-Protection, RC Trigger
  • Descent velocity: 2—4 m/s
  • Impact energy: 6—80 J

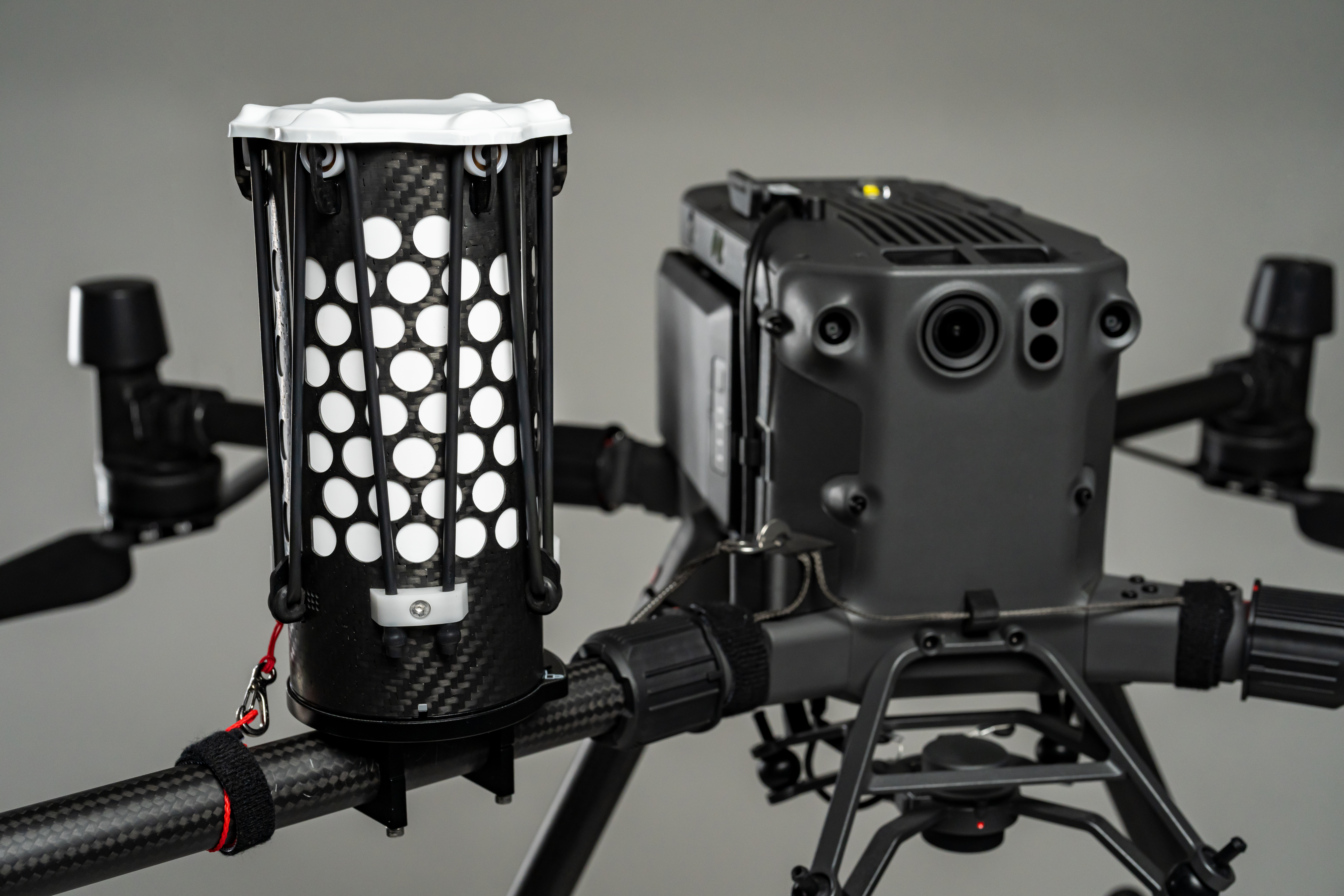

DRS-M300 Solution

The DRS-M300/M350 was designed for the DJI Matrice 300/350 and Matrice 300/350 RTK. It is connected via DJI’s onboard SDK and is compatible with all current DJI extensions and antennas. Flight parameters for failure detection are specifically adjusted for the M300/350, based on countless hours of flight data, that have gone into optimizing failure detection algorithms.

Specifications:

  • System weight: ~ 490 g
  • Height/Diameter: 165 mm / 100 mm
  • Parachute deployment: within 25 m
  • Interface: O-SDK
  • Optional: Geofencing, IP-Protection, RC Trigger
  • Descent velocity: 3.2 m/s (6.7 kg) – 3.6 m/s (9.6 kg)
  • Impact energy: 34 J (6.7 kg) – 62 J (9.6 kg)

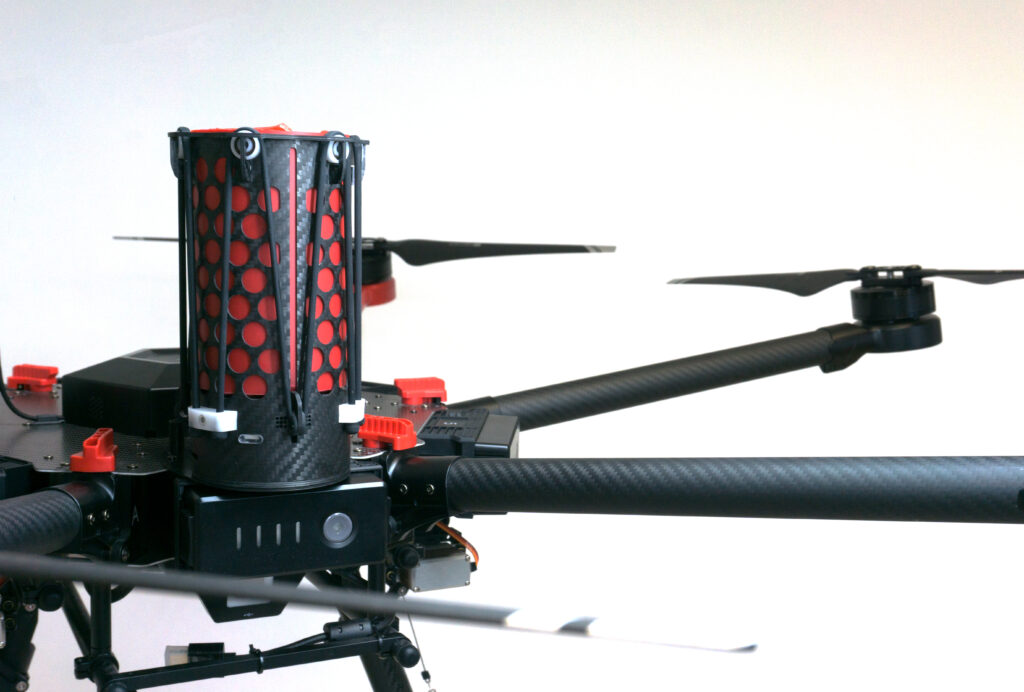

DRS-M600 Solution

The DRS-M600 was designed for the DJI Matrice 600 and Matrice 600 Pro. It is installed on the side of the main frame and can be used with all available system weights or antennas. With the included motor cut-off board, we reliably stop the props from spinning when the parachute is activated. Our failure detection algorithms have been optimized for the M600, based on large amounts of flight data we gathered from testing and cooperating customers.

Specifications:

  • System weight: ~ 430 g
  • Height/Diameter: 97 mm / 100 mm
  • Parachute deployment: within 25 m
  • Interface: Power-Cut-Off Board
  • Optional: Geofencing, IP-Protection, RC Trigger
  • Descent velocity: 3.9 m/s (11.5 kg) – 4.6 m/s (15.5 kg)
  • Impact energy: 87 J (11.5 kg) – 164 J (15.5 kg)
